- Place of Origin: China
- Brand Name: rijin
- Model Number: RJ-30T

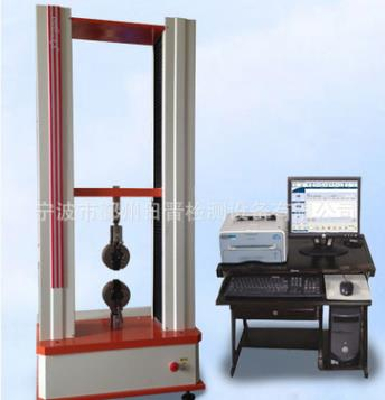

The machine for rubber, plastic, foam materials, plastics, films, flexible packaging, tubing, fabric, fiber, nano materials, polymer materials, composite materials, synthetic materials, packaging, paper, wire and cable, fiber optic cable, seat belts, belts, leather belt, shoes, belt, polymer, spring steel, stainless steel, casting, copper pipe, non-ferrous metal, auto parts, alloy materials and other non-metallic materials and metal materials for tensile, compression, bending, tearing, 90 °, 90 ° peel, peel, shearing, binding and drawing output, such as stretching elongation test.
- Place of Origin: China
- Brand Name: rijin
- Model Number: RJ-30T
A. high precision America force power sensor: 30 t
Power accuracy within / - 0.5%
B. capacity section: the whole seven gears: x 1, x 2, x 5, 10, 20 x, x 50, 100
24 bits A/D with high precision, sampling frequency 200 hz
The whole strength maximum resolution 1/1000000
C. power system, ac servo motor ball screw ac drives (Taiwan) reducer polished rod linear bearing, synchronous belt transmission.
D. control system: adopting Pulse Command control method makes the control more accurate
The speed control range of 0.01 ~ 150 mm/min.
Intermediate plate adjustment is fast coarse adjustment and the slow tuning function.
Automatic return to the origin, automatic storage after test.
E. data transmission mode, RS232 transmission
F. display mode: UTM107 7 test software computer screen display.
G. concise programme and precision in the whole process of the whole linear double seven power calibration system.
H. luxury test interface software which can realize constant speed, constant displacement, load, can be set to keep time, load rate, and the stress rate, strain rate and control mode combined with multistage control mode can meet the test requirements of different.
I. test space: width 350 mm (standard)
Al plate walking space 950 mm (excluding jig) (standard)
J. displacement: all the encoder 2500 P/R, 4 times improve accuracy
Using the LINE DRIVE encoder strong anti-jamming ability
Displacement resolution of 0.001 mm
